Sending and Recieving Message using JMS Queue on Wildfly 15

JMS (Java Message Service) is an API that provides the facility to create, send and read messages.
Generally, user sends message to application. But, if we want to send message from one application to another, we need to use JMS API.

To develop JMS queue example, you need to install any application server. Here, we are using Wildfly 15 server where we are creating two JNDI.

Before writing code we have create Queue connection and a JMS Queue  in Wildfly server

for creating Queue connection we have three option

1. In VM Connection

2. Http  Connection

2 Remote Connection

We using a In VM connection for our JMS application for creating JMS Queue connection

Go to bin directory of open cmd and write following command to start Wildfly server with configuration

standalone -c standalone-full.xml

after starting of Wildfly server hit following URL

Open Wild fly server admin console by the URL http://localhost:9990

Login with the username and password.

Go to following location

first of we need a JMS connector to create JMS connection wildfly by default create a In VM connector with name in-vm

for creating JMS coonection go to following location

Configuration-> Messaging (Active MQ)->Server->Default ->Connection ->View ->

Connection Factory -> Add

after entering JMS connection name , connector name and JMS Enteries value click on Add button

Now create JMS Queue for create  Go to following location

Configuration-> Messaging (Active MQ)->Server->Default ->Destinations->View ->

JMS Queue -> Add

after entering JMS queue name and JMS Enteries value click on Add button

After creating JMS Queue connection and and JMS Queue

Create a web application with name JMSapp(according to this blog) and create sender and receiver  servlet class

and an index page for enter message for sender class .

JMS Message sender servlet

SenderServrlet.java

package in.sha;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueSender;
import javax.jms.QueueSession;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class SenderServlet
 */
public class SenderServlet extends HttpServlet {
private static final long serialVersionUID = 1L;

public SenderServlet() {
super();
}

protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {

String message = request.getParameter("message");

try {
InitialContext ctx = new InitialContext();

QueueConnectionFactory f = (QueueConnectionFactory) ctx
.lookup("java:/ConnectionFactory");
System.out.println("-----");
System.out.println(f);

QueueConnection con = f.createQueueConnection();
con.start();
QueueSession ses = con.createQueueSession(false,
Session.AUTO_ACKNOWLEDGE);
Queue t = (Queue) ctx.lookup("java:/jms/queue/MyFirstQueue");
System.out.println(t);
QueueSender sender = ses.createSender(t);
TextMessage msg = ses.createTextMessage();
msg.setText(message);
sender.send(msg);
System.out.println("Message sending successfully ------->.");

} catch (Exception e) {
System.out.println(e);
}
}
}

JMS Message Listener

MyListener.java

package in.sha;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.TextMessage;

public class MyListener implements MessageListener {

    public void onMessage(Message m) {
        try{
        TextMessage msg=(TextMessage)m;

        System.out.println("Message is received by shashank:"+msg.getText());
        }catch(JMSException e){System.out.println(e);}
    }

}

JMS Message Reciever servlet

RecieverServlet.java

package in.sha;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import javax.jms.ConnectionFactory;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueReceiver;
import javax.jms.QueueSender;
import javax.jms.QueueSession;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class Reciever
 */
public class RecieverServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
public Reciever() {
super();

}

protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {

try {
InitialContext ctx = new InitialContext();
QueueConnectionFactory queueConnectionFactory = (QueueConnectionFactory) ctx
.lookup("java:/ConnectionFactory");


QueueConnection queueConnection = queueConnectionFactory.createQueueConnection();
queueConnection.start();
// 2) create Queue session
QueueSession ses = queueConnection.createQueueSession(false,
Session.AUTO_ACKNOWLEDGE);
// 3) get the Queue object
Queue t = (Queue) ctx.lookup("java:/jms/queue/MyFirstQueue");

// 5) create TextMessage object
QueueReceiver receiver = ses.createReceiver(t);

// 5) create listener object
MyListener listener = new MyListener();

// 6) register the listener object with receiver
receiver.setMessageListener(listener);

System.out.println("Receiver1 is ready, waiting for messages...");
System.out.println("procees start.......");
while (true) {
Thread.sleep(1000);
}
} catch (Exception e) {
System.out.println(e);
}
}
}

index.jsp page for entering message

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Enter Message</title>
</head>
<body>
<form action="SenderServlet" method="get">
<input type="text" name="message">
<input type="submit" value="submit">
</form>
</body>
</html>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
  <display-name>Testjmsapp</display-name>
  <servlet>
    <servlet-name>test</servlet-name>
    <servlet-class>in.sha.MyServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>test</servlet-name>
    <url-pattern>/test</url-pattern>
  </servlet-mapping>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
  <servlet>
    <description></description>
    <display-name>RecieverServlet</display-name>
    <servlet-name>RecieverServlet</servlet-name>
    <servlet-class>in.sha.RecieverServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>RecieverServlet</servlet-name>
    <url-pattern>/RecieverServlet</url-pattern>
  </servlet-mapping>
  <servlet>
    <description></description>
    <display-name>SenderServlet</display-name>
    <servlet-name>SenderServlet</servlet-name>
    <servlet-class>in.sha.SenderServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>SenderServlet</servlet-name>
    <url-pattern>/SenderServlet</url-pattern>
  </servlet-mapping>
  <servlet>
    <description></description>
    <display-name>Reciever</display-name>
    <servlet-name>Reciever</servlet-name>
    <servlet-class>in.sha.RecieverServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>Reciever</servlet-name>
    <url-pattern>/RecieverServlet</url-pattern>
  </servlet-mapping>
</web-app>

To run and test our application code depoly application in Wildfly server

after successful depolyment of application

first run JMS meesage Reciver Servlet by

Enter URL http://localhost:9990/JMSapp/RecieverServlet

you will see following output in wildfly console .....

Now you reciever is running successfully ready to reciver message form Sender

Now start Sender for open following URL

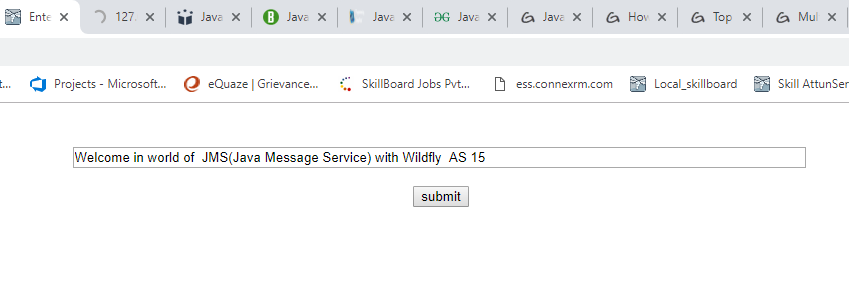

Enter URL  http://localhost:9990/JMSapp/index.jsp

After entering your message click on submit

Now you will see following output in wildfly console .....

you can see message is consume by JMS reciever .
